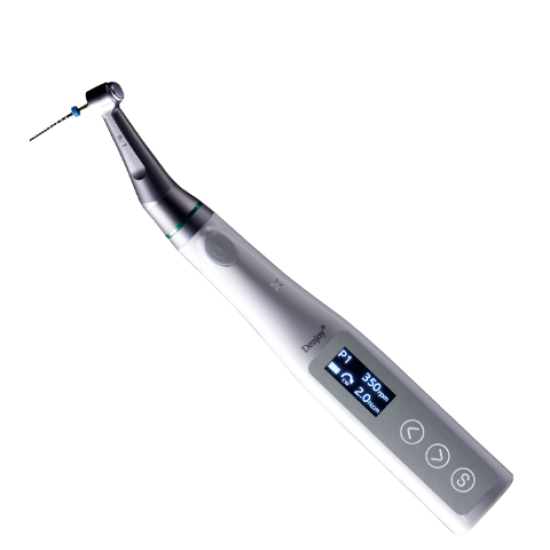

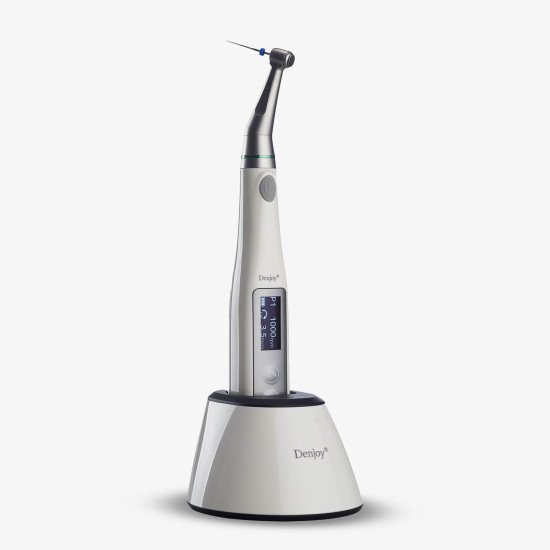

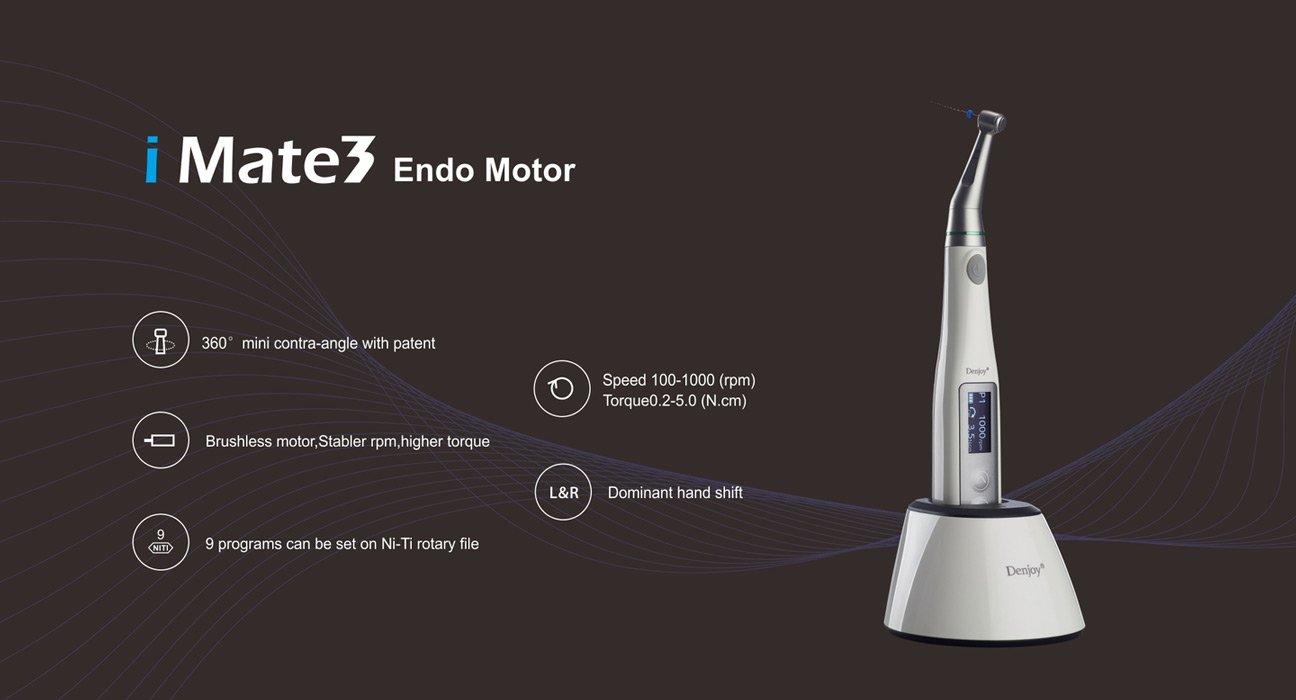

Rotary Denjoy i Mate 3 Endo Motor

Rotary Denjoy i Mate 3 Endo Motor
Rotary Denjoy i Mate 3 Endo Motor
Rotary Denjoy i Mate 3 Endo Motor
Hot -21 %
Rotary Denjoy i Mate 3 Endo Motor
Rotary Denjoy i Mate 3 Endo Motor
Rotary Denjoy i Mate 3 Endo Motor
Rotary Denjoy i Mate 3 Endo Motor
  • Stock: In Stock
  • Brand: Denjoy
  • Model: i mate 3
Product Views: 6208
13,100 EGP
16,500 EGP
Ex Tax: 13,100 EGP
Product Details
Warranty 24 Month
Manufactured in China
Vendor El bader





Speed
100-1000rpm
Torque
0.2-5.0N.cm
Battery Capacity
2000mAh
Reciprocate angle
30-370°
Charging time
<2h
Screen resolution
128*64


Auto Oscillation Control


After starting,the file needle rotates 360°clockwise(①)

When the torque reaches the set torque,run the rotation action according to the set angle (②③)

Resume clockwise rotation when torque is less than  the set value(①)

Only clockwise rotation angle can be set, and counterclockwise rotation angle is half of clockwise rotation angle




Reciprocation

After starting, the file needleoperates according to the set speed and reciprocating angle,the maximum torque is not adjustable by default,the forward reciprocation and reverse reciprocation are realized by setting the angle

Reciprocating motion file is recommended




Clockwise Mode

After starting, the file needle rotates 360°clockwise(①)

When the torque point action is set to "reverse",the buzzer willprompt when the torque is set,and the motor will rotate counterclockwise(②)

Rotate clockwise when torque is removed(①)

The torque point action is set to "stop", and the motorwill stop rotating when the torque is set




Counterclockwise Mode


After starting, the file needle rotates 360°counterclockwise(①)

When the torque point action is set to "reverse",the buzzer will prompt when the torque is set,and the motor will rotate clockwise(②)

Counterclockwise rotation will resume after torque is removed(①)

The torque point action is set to "stop", and the motorwill stop rotating when the torque is set
