Meta Biomed EQ-S Sonic Powder Endo Irrigation

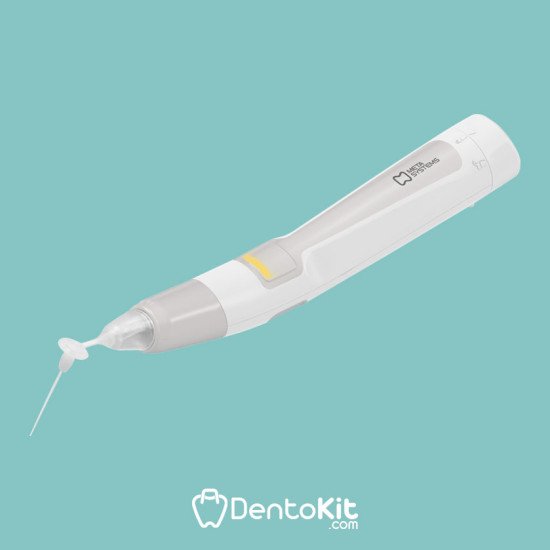

META BIOMED EQ-S. Rotational & Vertical Movement. The use of an indentation along the tip, in conjunction with a motion in the anti-clockwise direction, guarantees 3D Active Flow. The EQ-S tip's one-of-a-kind design and shape provide a more powerful force, which improves the flow of fluid through narrow channels. The EQ-S applies much less pressure to the apical foramen than its predecessor.

Indentation along the tip, in conjunction with motion in the anti-clockwise direction, guarantees three-dimensional active flow. The EQ-S tip's one-of-a-kind configuration and design provide a more powerful force, which improves the flow of liquid through narrow canals.

With the help of Meta Biomed's brand-new cordless endo motor EQ-S, you can reduce the likelihood of file breakage and shape canals with more confidence.

The patented Alternative Rotation Technique (ART) action lessens the load that is placed on the file and the root canal by spreading out the forces and adjusting the rotational speed of the motor. As a result, the file's fracture resistance has decreased by more than 25 percent.

The outstanding performance of this motor, produced in Switzerland, assures torque safety at any time and has a performance life of up to 3,000 hours.

The EQ-S offers a pleasant treatment environment for the doctor as well as the patient by greatly reducing the amount of noise and vibration.

The use of an indentation along the tip, in conjunction with a motion in the anti-clockwise direction, guarantees 3D Active Flow.

The EQ-S tip's one-of-a-kind design and shape provide a more powerful force, which improves the flow of fluid through narrow channels.

The EQ-S applies less force to the apical foramen than other models. Access to curving canals is made simpler. Interaction with the irrigant that is flawless. The use of a color system

The EQ-S has to be cleansed and disinfected with gauze that has been dipped in alcohol or another kind of disinfecting solution before use.

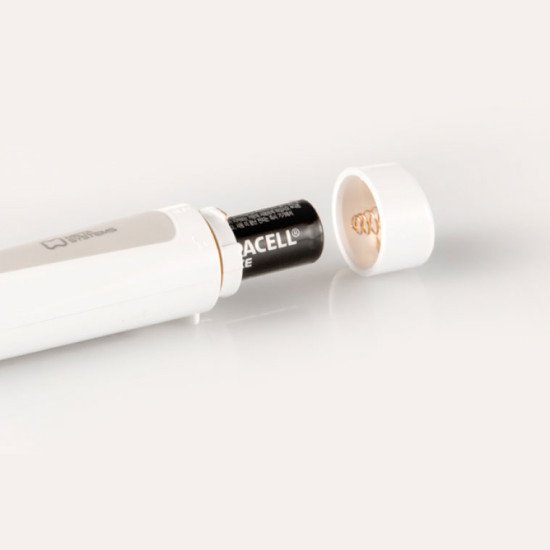

Please ensure that the "AA" Alkaline batteries are inserted before using the gadget.

After each usage, the tips need to be thrown away.

*META BIOMED EQ-S- GREY color available

*Meta systems warrants the system to be free from defects in materials or workmanship for a period of 1 year from the original date of purchase.

The warranty details are in the 'instructions for use' booklet- available in the product box.

Warning:

Do not submerge the handpiece in any disinfecting solution or water

Do not autoclave the unit

For Infection Control, select the appropriately sized EQ-S tip and remove it from the package.

EQ-S tips are intended for single-patient use only (discard used tips)

Instructions for use:

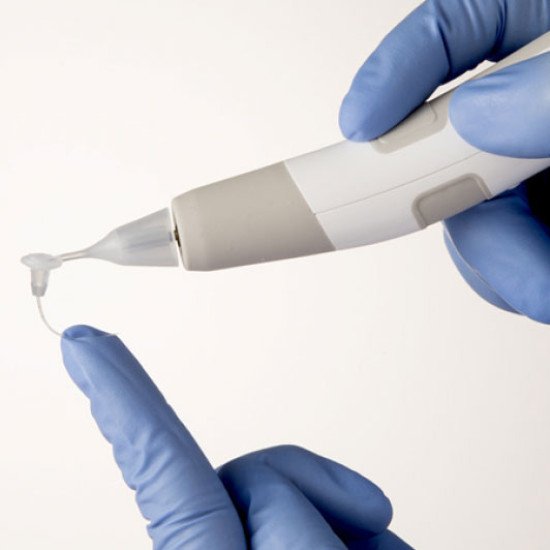

Select the proper EQ-S tip, attach to the handpiece and place it in the root canal

To activate the device, push power/mode button (High/low speed options available)

Move the handpiece down approximately 2-3mm

Irrigate for 30-60 seconds then use suction to remove debris

DIMENSIONS- W24 x H25 x L183 (including tip)

WEIGHT- 43g

BATTERY- 1.5V Alkaline (AA)

OPERATING TIME- 9 hour (continuous operation)

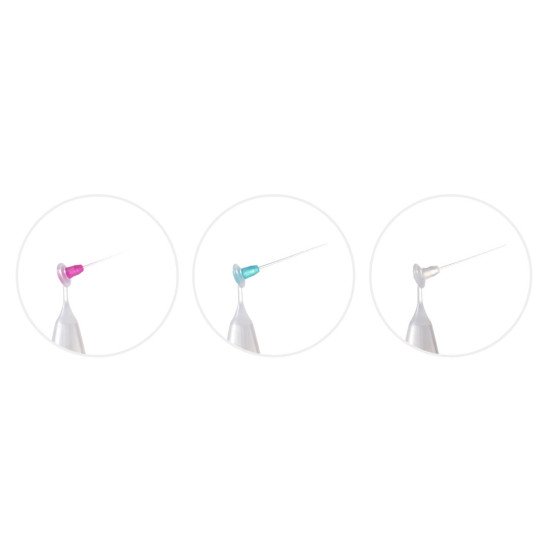

Tip Size-

Small (15/02) white

Medium (25/02) red

Large (35/02) green

*90 Tips included-30 of each size
